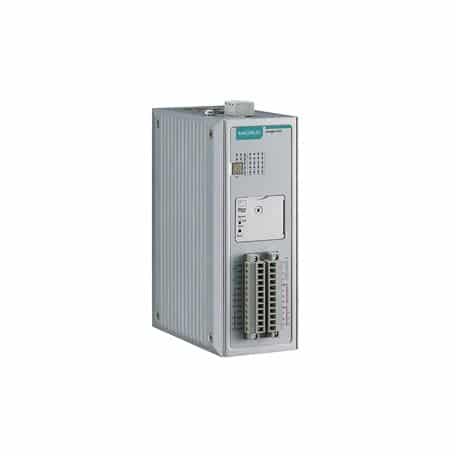

Descrizione IOLOGIK 2542-HSPA
Il Moxa ioLogik 2542-HSPA è una soluzione avanzata per la raccolta e il monitoraggio remoto dei dati in ambienti industriali. Dotato di 4 ingressi analogici configurabili e 12 canali I/O digitali, questo dispositivo consente una gestione efficiente e flessibile di segnali digitali e analogici. La funzionalità cellulare UMTS/HSPA+ integrata supporta una connettività affidabile su cinque bande, garantendo la trasmissione dei dati in tempo reale anche in aree remote.
Grazie allo slot microSD integrato, il dispositivo può registrare dati fino a 32 GB, fornendo una soluzione completa di data logging. Questa caratteristica, combinata con il supporto di protocolli come Modbus TCP, SNMP e RESTful API, rende il ioLogik 2542-HSPA ideale per l’integrazione in infrastrutture IT/OT moderne.
Il dispositivo è progettato per operare in un intervallo di temperatura da -10°C a 60°C e dispone di protezione IP30. L’hardware robusto e il supporto per alimentazione a 12-48 VDC garantiscono l’affidabilità anche in ambienti difficili. Inoltre, le capacità di Click&Go Plus™ logic semplificano la configurazione di regole di controllo personalizzate senza la necessità di programmazione complessa.
Con la possibilità di connessione a più moduli ioLogik E1200 per espandere i canali I/O, il ioLogik 2542-HSPA rappresenta una soluzione scalabile e versatile per la gestione di dati sul campo e la comunicazione remota.
Specifiche Tecniche IOLOGIK 2542-HSPA
Scarica scheda tecnica IOLOGIK 2542-HSPAMemory
- microSD Slot
-
Up to 32 GB (SD 2.0 compatible)
Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
- Language
- Click&Go Plus
Input/Output Interface
- Configurable DIO Channels (by software)
- 12
- Analog Input Channels
- 4
- Buttons
- Reset button
- Isolation
- 3k VDC or 2k Vrms
Digital Inputs
- Connector
- Screw-fastened Euroblock terminal
- Sensor Type
-
Dry contact
Wet contact (NPN or PNP) - I/O Mode
- DI or event counter
- Dry Contact
-
On: short to GND
Off: open - Wet Contact (DI to COM)
-
On: 10 to 30 VDC
Off: 0 to 3 VDC - Counter Frequency
- 2.5 kHz
- Digital Filtering Time Interval
- Software configurable
- Points per COM
- 6 channels
Digital Outputs
- Connector
- Screw-fastened Euroblock terminal
- I/O Type
- Sink
- I/O Mode
- DO or pulse output
- Current Rating
- 500 mA per channel
- Pulse Output Frequency
- 5 kHz (max.)
- DIO Output Leakage Current
- < 1 mA @ 30 VDC
- Over-Current Protection
- 1.5 A per channel @ 25°C
- Over-Temperature Shutdown
- 175°C (typical), 150°C (min.)
- Over-Voltage Protection
- 45 VDC (typical)
Analog Inputs
- Connector
- Screw-fastened Euroblock terminal
- I/O Mode
- Voltage/Current
- I/O Type
- Differential
- Resolution
- 16 bits
- Input Range
-
±10 VDC
0 to 10 VDC
0 to 20 mA
4 to 20 mA
4 to 20 mA (with burn-out detection) - Accuracy
-
±0.1% FSR @ 25°C
±0.3% FSR @ -10 to 60°C - Sampling Rate
-
All channels: 400 samples/sec
Per channel: 100 samples/sec - Built-in Resistor for Current Input
- 120 ohms
- Input Impedance
- 1 mega-ohms (min.)
- Over-Voltage Protection
-
-25 to +30 VDC (power on)
-35 to +35 VDC (power off)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
- 4, 1 MAC address
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options
- Web Console (HTTP/HTTPS), Windows Utility (IOxpress)
- Industrial Protocols
- CGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c Trap
- Management
- BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
- MIB
- Device Settings MIB
- Security
- HTTPS/SSL
- Time Management
- SNTP
LED Interface
- LED Indicators
- PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15), Wireless connection, Signal Status
Serial Interface
- Baudrate
- 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
- Connector
- 8-pin RJ45
- Data Bits
- 5, 6, 7, 8
- Flow Control
- None, RTS/CTS, XON/XOFF
- No. of Ports
- 2
- Parity
- None, Even, Odd
- Serial Standards
- RS-232, RS-422, RS-485
- Stop Bits
- 1, 2
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
- Industrial Protocols
- Modbus RTU Master
Cellular Interface
- Cellular Standards
- GSM, EDGE, GPRS, UMTS, HSPA
- Band Options
-
UMTS/HSPA 800 MHz / 850 MHz / 900 MHz / 1900 MHz / 2100 MHz
Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz - SIM Control Voltage
- 1.8 V, 3 V
- SIM Format
- Mini SIM
- Cellular Antenna Connectors
- 1 SMA female
Security Functions
- IPsec VPN
- DES, 3DES, AES-128, AES-192, AES-256
Platform
- Real-time Clock (RTC)
- Real-time clock with capacitor backup
Power Parameters
- Power Connector
- Screw-fastened Euroblock terminal
- No. of Power Inputs
- 1
- Input Voltage
- 12 to 48 VDC
- Power Consumption
-
311 mA @ 24 VDC
649 mA @ 12 VDC
166 mA @ 48 VDC
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP30
- Dimensions
- 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
- Weight
- 1,265 g (2.79 lb)
- Installation
- DIN-rail mounting, Wall mounting (with optional kit)
- Wiring
-
I/O cable, 16 to 26 AWG
Power cable, 12 to 24 AWG
Environmental Limits
- Operating Temperature
- -10 to 60°C (14 to 140°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Altitude
- 2000 m
Standards and Certifications
- EMC
- EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
-
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-5 Surge: Power: 2 kV - Vibration
- IEC 60068-2-6
- Shock
- IEC 60068-2-27
- Freefall
- IEC 60068-2-32
- Hazardous Locations
- ATEX, Class I Division 2
- Safety
- UL 508
- Radio
- EN 301 489-1/17
- Radio Frequency
- EN 301 908, EN 301 489-24, EN 301 511
Declaration
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Time
- 378,154 hrs
- Standards
- Telcordia SR332
Warranty
- Warranty Period
- 5 years
