Descrizione NPORT W2150A
Questo prodotto ha ottenuto una valutazione di 4.6 su 5 basato su 856 acquisti verificati

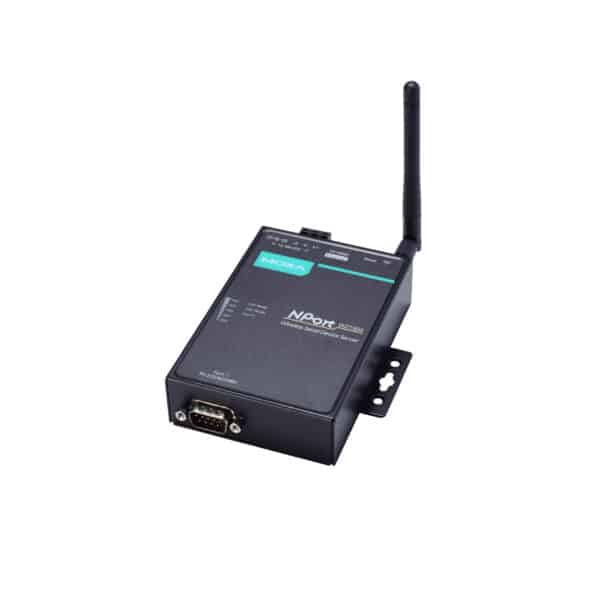

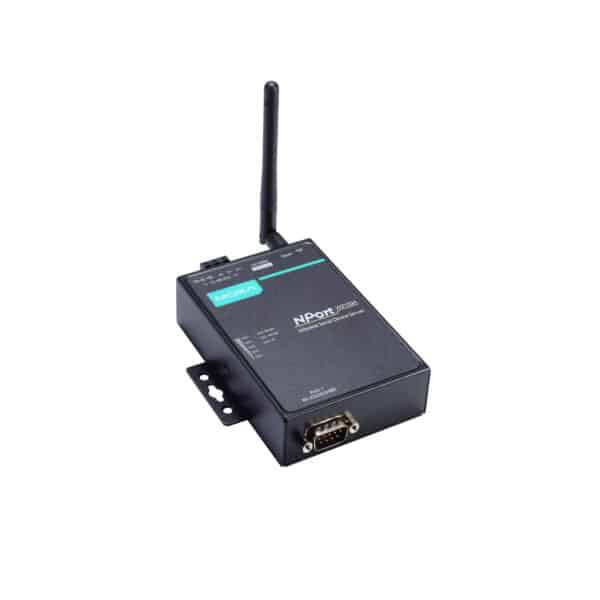

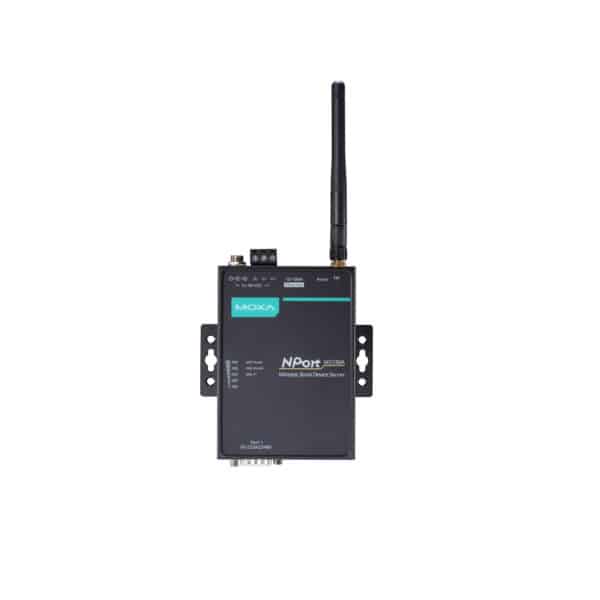

Il Moxa NPort W2150A è un dispositivo serial-to-WiFi che consente di integrare dispositivi seriali in reti wireless moderne, eliminando la necessità di cablaggi complessi. Dotato di una porta RS-232/422/485 e supporto per lo standard IEEE 802.11a/b/g/n, il dispositivo offre velocità fino a 150 Mbps e una trasmissione stabile entro 100 metri in aree aperte.
La sicurezza è garantita grazie al supporto per WEP, WPA/WPA2-Personal ed Enterprise, e all’uso di HTTPS e SSH per la gestione remota. Le modalità operative Ad-hoc e Infrastructure permettono un’integrazione flessibile con reti esistenti, facilitando la connessione di PLC, sensori e altri dispositivi seriali.
Progettato per ambienti industriali standard, il NPort W2150A opera a temperature comprese tra 0°C e 55°C. La configurazione è semplice grazie alla Web Console integrata e al software Windows Utility. La costruzione robusta con protezione IP30 e il supporto per l’installazione desktop o a parete garantiscono affidabilità e durata nel tempo.
Specifiche Tecniche NPORT W2150A
Scarica scheda tecnica NPORT W2150AEthernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
- 1
- Magnetic Isolation Protection
- 1.5 kV (built-in)
- Standards
-
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
- Configuration Options
- Web Console (HTTP/HTTPS), Windows Utility
- Management
- DHCP Option 82, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, Web Console
- Windows Real COM Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Real TTY Drivers
- Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
- Fixed TTY Drivers
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Android API
- Android 3.1.x and later
- MIB
- Device Settings MIB, RFC1213, RFC1317
- Security
- HTTPS/SSL, User Authentication Management: local database, RADIUS, Secure Protocols: HTTPS (TLSv1.2), SSH, SNMPv3, Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
- Time Management
- NTP Client, SNTP Client
WLAN Interface
- WLAN Standards
- 802.11a/b/g/n
- Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
-
Typ. -91 @ 6 Mbps
Typ. -74 @ 54 Mbps - Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
-
Typ. -92 dBm @ 1 Mbps
Typ. -84 dBm @ 11 Mbps - Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
-
Typ. -91 dBm @ 6 Mbps
Typ. -73 dBm @ 54 Mbps - Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
-
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz) - Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
-
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Typ. -85 dBm @ 13.5 Mbps (40 MHz)
Typ. -67 dBm @ 150 Mbps (40 MHz) - Modulation Type
-
DSSS
OFDM - Transmission Distance
- Up to 100 meters (in open areas)
- Transmission Rate
-
802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 6.5 to 150 Mbps - Transmitter Power for 802.11b
-
16±1.5 dBm @ 1 Mbps
16±1.5 dBm @ 11 Mbps - Transmitter Power for 802.11g
-
16±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps - Transmitter Power for 802.11a
-
15±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps - Transmitter Power for 802.11n (2.4 GHz)
-
16 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (72.2 MHz) - Transmitter Power for 802.11n (5 GHz)
-
15 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (150 MHz) - Frequency Band for CN (20 MHz operating channels)
-
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.745 to 5.825 GHz (5 channels) - Frequency Band for EU (20 MHz operating channels)
-
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels) - Frequency Band for JP (20 MHz operating channels)
-
2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels) - Frequency Band for US (20 MHz operating channels)
-
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels) - Wireless Security
-
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal - WLAN Modes
- Ad-hoc Mode, Infrastructure mode
Antenna Characteristics
- Connector
- RP-SMA (male)
- Antenna Type
- Omni-directional
Security Functions
- Authentication
-
Local database
RADIUS - Encryption
- HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384
- Security Protocols
-
SNMPv3
SSHv2
HTTPS (TLS 1.2)
Serial Interface
- Connector
- DB9 male
- No. of Ports
- 1
- Serial Standards
- RS-232, RS-422, RS-485
- Operation Modes
- Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Pair Connection mode, Ethernet Modem mode, Disabled
- Baudrate
- 50 bps to 921.6 kbps
- Data Bits
- 5, 6, 7, 8
- Stop Bits
- 1, 1.5, 2
- Parity
- None, Even, Odd, Space, Mark
- Flow Control
- None, RTS/CTS, XON/XOFF
- RS-485 Data Direction Control
- ADDC® (automatic data direction control)
- Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485
- 120 ohms
- Surge
- 1 kV
Physical Characteristics
- Housing
- Metal
- Installation
- Desktop, DIN-rail mounting (with optional kit), Wall mounting
- Dimensions (with ears, without antenna)
- 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
- Dimensions (without ears or antenna)
- 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
- Weight
- 547 g (1.21 lb)
- Antenna Length
- 109.79 mm (4.32 in)
Environmental Limits
- Operating Temperature
- 0 to 55°C (32 to 131°F)
- Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Power Parameters
- Input Current
- 179 mA @ 12 VDC
- Input Voltage
- 12 to 48 VDC
Standards and Certifications
- EMC
- EN 55032/24
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
-
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 - Radio Frequency
- CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301 489-17, ETSI EN 301 489-1), ARIB RCR STD-33, ARIB STD-66
Reliability
- Alert Tools
- RTC (real-time clock)
- Automatic Reboot Trigger
- Built-in WDT
MTBF
- Time
- 383,187 hrs
- Standards
- Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period
- 5 years
