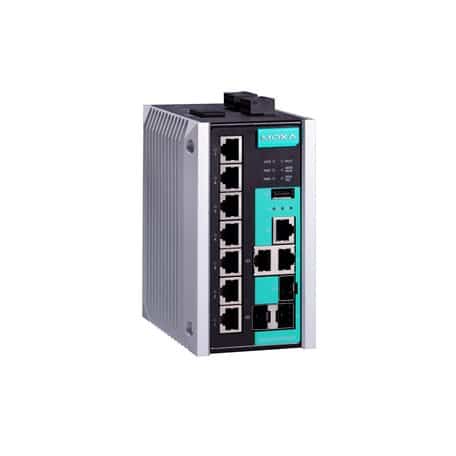

Descrizione EDS-510E-3GTXSFP-T
Lo switch Ethernet gestito EDS-510E-3GTXSFP-T è ideale per ambienti che richiedono elevata affidabilità e prestazioni avanzate, come l’automazione industriale, ITS e il controllo di processo. Questo modello si distingue per la sua capacità di supportare configurazioni di rete complesse e critiche, grazie alle sue 3 porte Gigabit Ethernet che permettono la realizzazione di un anello Turbo Ring ridondante e un uplink Gigabit efficiente.
Inoltre, lo switch EDS-510E-3GTXSFP-T è dotato di 7 porte 10/100BaseT(X) con connettore RJ45 e 3 porte combo 10/100/1000BaseT(X) o 100/1000BaseSFP, offrendo così una grande versatilità di connessione. La robustezza è garantita anche da una temperatura operativa estesa da -40 a 75°C, rendendolo adatto anche per ambienti estremi.
Le funzionalità aggiuntive includono la gestione tramite CLI, supporto per protocolli come EtherNet/IP, PROFINET e Modbus TCP, e avanzate opzioni di sicurezza e gestione del traffico come IGMP snooping, VLAN e QoS. Queste caratteristiche rendono lo switch EDS-510E-3GTXSFP-T una scelta eccellente per chi cerca una soluzione affidabile e sicura per la gestione della rete.
Specifiche Tecniche EDS-510E-3GTXSFP-T
Scarica scheda tecnica EDS-510E-3GTXSFP-TInput/Output Interface
- Alarm Contact Channels
- 1, Relay output with current carrying capacity of 1 A @ 24 VDC
- Buttons
- Reset button
- Digital Input Channels
- 1
- Digital Inputs
-
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
-
7
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection - Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 3
- 10/100/1000BaseT(X) Ports (RJ45 connector)
-
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection - Standards
-
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
- Filter
- 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
- Industrial Protocols
- EtherNet/IP, Modbus TCP, PROFINET IO Device
- Management
- LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
- MIB
- Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
- Redundancy Protocols
- Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
- Security
- Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, SMTP with TLS
- Time Management
- NTP Server/Client, SNTP
Switch Properties
- IGMP Groups
- 2048
- MAC Table Size
- 8 K
- Max. No. of VLANs
- 64
- Packet Buffer Size
- 1 Mbits
- Priority Queues
- 4
- VLAN ID Range
- VID 1 to 4094
USB Interface
- Storage Port
- USB Type A
LED Interface
- LED Indicators
- PWR1, PWR2, STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL
Serial Interface
- Console Port
- USB-serial console (Type B connector)
DIP Switch Configuration
- DIP Switches
- Turbo Ring, Master, Coupler, Reserve
Power Parameters
- Connection
- 2 removable 4-contact terminal block(s)
- Input Current
- 0.68 A @ 24 VDC
- Input Voltage
- 12/24/48/-48 VDC, Redundant dual inputs
- Operating Voltage
- 9.6 to 60 VDC
- Overload Current Protection
- Supported
- Reverse Polarity Protection
- Supported
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP30
- Dimensions
- 79.2 x 135 x 116 mm (3.12 x 5.31 x 4.57 in)
- Weight
- 1690 g (3.73 lb)
- Installation
- DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature
- -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- Safety
- UL 508
- EMC
- EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
-
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF - Hazardous Locations
- ATEX, Class I Division 2
- Maritime
- DNV-GL, LR, ABS, NK
- Power Substation
- IEC 61850-3, IEEE 1613
- Railway
- EN 50121-4
- Traffic Control
- NEMA TS2
- Shock
- IEC 60068-2-27
- Freefall
- IEC 60068-2-32
- Vibration
- IEC 60068-2-6
MTBF
- Time
- 725,532 hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 5 years
