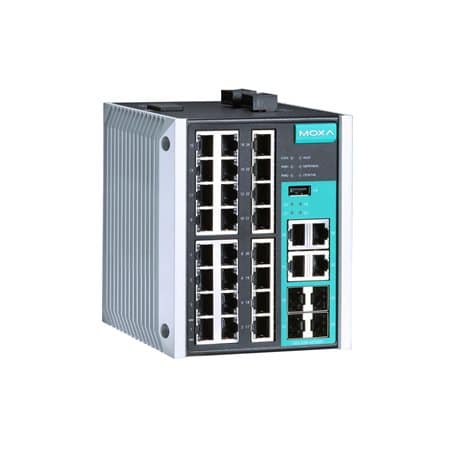

Descrizione EDS-528E-4GTXSFP-LV
Lo switch gestito EDS-528E-4GTXSFP-LV, parte della serie EDS-528E, è progettato per ambienti industriali con spazio limitato e alte esigenze di protezione. Questo modello offre 24 porte Fast Ethernet e 4 porte combo Gigabit, che supportano sia connettori RJ45 che slot SFP per una comunicazione in fibra ottica. La flessibilità di queste combinazioni di porte permette una progettazione di rete su misura e altamente efficiente.
Le tecnologie di ridondanza Ethernet come Turbo Ring, Turbo Chain, RSTP/STP e MSTP aumentano l’affidabilità e la disponibilità del backbone di rete. Inoltre, lo switch supporta funzionalità avanzate di gestione e sicurezza, tra cui VLAN basate su porta, IEEE 802.1Q VLAN, GVRP, QoS, trunking di porte, SNMP, RMON e gestione della larghezza di banda.
Specifiche tecniche uniche di questo modello includono: doppia alimentazione 12/24/48/-48 VDC e una temperatura operativa da -10 a 60°C, rendendolo ideale per applicazioni come automazione marittima, ferroviaria, petrolifera e gassosa, automazione di fabbrica e automazione di processo.
Specifiche Tecniche EDS-528E-4GTXSFP-LV
Scarica scheda tecnica EDS-528E-4GTXSFP-LVInput/Output Interface
- Alarm Contact Channels
- 1, Relay output with current carrying capacity of 1 A @ 24 VDC
- Buttons
- Reset button
- Digital Input Channels
- 1
- Digital Inputs
-
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
-
24
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection - Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 4
- 10/100/1000BaseT(X) Ports (RJ45 connector)
-
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection - Standards
-
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
- Filter
- 802.1Q VLAN, GVRP, IGMP v1/v2/v3, GMRP, Port-based VLAN
- Industrial Protocols
- EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
- Management
- LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
- MIB
- Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
- Redundancy Protocols
- Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
- Security
- Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS
- Time Management
- NTP Server/Client, SNTP
Switch Properties
- IGMP Groups
- 2048
- MAC Table Size
- 16 K
- Max. No. of VLANs
- 64
- Packet Buffer Size
- 1 Mbits
- Priority Queues
- 4
- VLAN ID Range
- VID 1 to 4094
USB Interface
- Storage Port
- USB Type A
LED Interface
- LED Indicators
- PWR1, PWR2 (LV model), STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL
Serial Interface
- Console Port
- USB-serial console (Type B connector)
DIP Switch Configuration
- DIP Switches
- Turbo Ring, Master, Coupler, Reserve
Power Parameters
- Connection
- 2 removable 4-contact terminal block(s)
- Input Current
- 0.47 A @ 24 VDC
- Input Voltage
- 12/24/48/-48 VDC, Redundant dual inputs
- Operating Voltage
- 9.6 to 60 VDC
- Overload Current Protection
- Supported
- Reverse Polarity Protection
- Supported
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP30
- Dimensions
- 115.4 x 135 x 137 mm (4.54 x 5.31 x 5.39 in)
- Weight
- 1850 g (4.08 lb)
- Installation
- DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature
- -10 to 60°C (14 to 140°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- Safety
- UL 61010-2-201, EN 60950-1 (LVD)
- EMC
- EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
-
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF - Power Substation
- IEC 61850-3, IEEE 1613
- Railway
- EN 50121-4
- Shock
- IEC 60068-2-27
- Freefall
- IEC 60068-2-32
- Vibration
- IEC 60068-2-6
MTBF
- Time
- 774,634 hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 5 years
