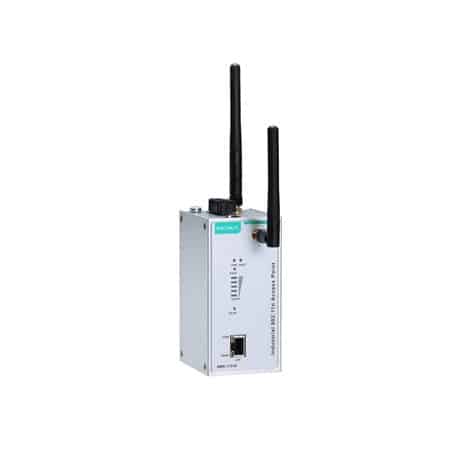

Descrizione AWK-1131A-EU
L’AWK-1131A-EU è progettato per soddisfare le esigenze di trasmissione dati ad alta velocità negli ambienti industriali, supportando la tecnologia IEEE 802.11a/b/g/n che garantisce una velocità di trasmissione dati fino a 300 Mbps. Questo modello è conforme agli standard industriali per temperatura operativa, tensione di ingresso dell’alimentazione, sovratensioni, ESD e vibrazioni, garantendo un funzionamento affidabile e sicuro.
Con la capacità di operare nelle bande di 2.4 o 5 GHz, l’AWK-1131A-EU è retrocompatibile con le implementazioni 802.11a/b/g esistenti, proteggendo così gli investimenti wireless futuri. La doppia alimentazione DC ridondante aumenta l’affidabilità dell’alimentazione, mentre il robusto involucro in alluminio con classificazione IP30 protegge l’unità da interferenze ambientali.
La gestione della rete wireless tramite MXview Wireless offre una visualizzazione dinamica della topologia, mostrando lo stato dei collegamenti wireless e le modifiche delle connessioni in modo intuitivo. Questo modello specifico, AWK-1131A-EU, supporta una temperatura operativa da 0 a 60°C e opera nella banda EU, rendendolo ideale per una vasta gamma di applicazioni industriali.
Specifiche Tecniche AWK-1131A-EU
Scarica scheda tecnica AWK-1131A-EUWLAN Interface
- WLAN Standards
-
802.11a/b/g/n
802.11i Wireless Security - Modulation Type
-
DSSS
OFDM
MIMO-OFDM - Frequency Band for EU (20 MHz operating channels)
-
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels) - Wireless Security
-
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal - Transmission Rate
-
802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps - Transmitter Power for 802.11a
-
23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps - Transmitter Power for 802.11n (5 GHz)
-
23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz - Transmitter Power for 802.11b
-
26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps - Transmitter Power for 802.11g
-
23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
19±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps - Transmitter Power for 802.11n (2.4 GHz)
-
23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz - Transmitter Power
- n nn n n n n n nnnnnnUSnEUnJPnnnnnnnn2.4 GHzn26 dBmn18 dBmn18 dBmnnn5 GHz (UNII-1)n23 dBmn21 dBmn21 dBmnnn5 GHz (UNII-2)n23 dBmn21 dBmn21 dBmnnn5 GHz (UNII-2e)n23 dBmn23 dBmn23 dBmnnn5 GHz (UNII-3)n23 dBmn–n–nnnnnnnnNote: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.nnnnnn n n n n
- Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
-
Typ. -90 @ 6 Mbps
Typ. -88 @ 9 Mbps
Typ. -88 @ 12 Mbps
Typ. -85 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -74 @ 48 Mbps
Typ. -72 @ 54 Mbps
Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications. - Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
-
Typ. -69 dBm @ MCS7 20 MHz
Typ. -71 dBm @ MCS15 20 MHz
Typ. -63 dBm @ MCS7 40 MHz
Typ. -68 dBm @ MCS15 40 MHz
Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications. - Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
-
Typ. -93 dBm @ 1 Mbps
Typ. -93 dBm @ 2 Mbps
Typ. -93 dBm @ 5.5 Mbps
Typ. -88 dBm @ 11 Mbps - Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
-
Typ. -88 dBm @ 6 Mbps
Typ. -86 dBm @ 9 Mbps
Typ. -85 dBm @ 12 Mbps
Typ. -85 dBm @ 18 Mbps
Typ. -85 dBm @ 24 Mbps
Typ. -82 dBm @ 36 Mbps
Typ. -78 dBm @ 48 Mbps
Typ. -74 dBm @ 54 Mbps - Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
-
Typ. -70 dBm @ MCS7 20 MHz
Typ. -69 dBm @ MCS15 20 MHz
Typ. -67 dBm @ MCS7 40 MHz
Typ. -67 dBm @ MCS15 40 MHz - WLAN Operation Mode
- Access point, Client, Sniffer
- Antenna
- External, 2/2 dBi, Omni-directional
- Antenna Connectors
- 2 RP-SMA female
Ethernet Interface
- Standards
-
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.1X for authentication - 10/100/1000BaseT(X) Ports (RJ45 connector)
- 1
