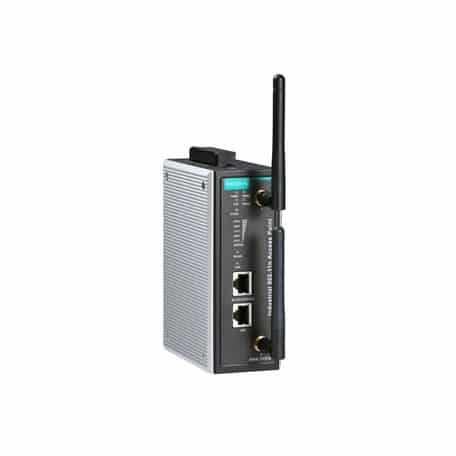

Descrizione AWK-3131A-EU
Il AWK-3131A-EU rappresenta una soluzione avanzata per le reti wireless industriali, garantendo prestazioni elevate e affidabilità in ambienti estremi. Questo dispositivo supporta la tecnologia 802.11n, permettendo una trasmissione dati fino a 300 Mbps e operando efficacemente sia su bande di 2.4 che di 5 GHz. È retrocompatibile con le infrastrutture 802.11a/b/g, assicurando un investimento duraturo nel tempo.
Progettato per l’uso industriale, il AWK-3131A-EU è dotato di un’antenna integrata e isolamento di potenza per protezione fino a 500 V contro interferenze esterne. Supporta fino a 60 clienti connessi contemporaneamente e offre funzionalità come il Turbo Roaming per tempi di recupero inferiori a 150 ms e la AeroLink Protection per una connessione wireless ridondante e affidabile.
Con certificazioni per ambienti pericolosi come Class I Div. II e ATEX Zone 2 e un range di temperatura operativa da -25 a 60°C, il AWK-3131A-EU è ideale per comunicazioni wireless in condizioni difficili. La gestione della rete wireless tramite MXview Wireless offre una visualizzazione dinamica delle connessioni e permette un monitoraggio dettagliato delle prestazioni di ogni dispositivo.
Specifiche Tecniche AWK-3131A-EU
Scarica scheda tecnica AWK-3131A-EUWLAN Interface
- WLAN Standards
-
802.11a/b/g/n
802.11i Wireless Security - Modulation Type
-
DSSS
OFDM
MIMO-OFDM - Frequency Band for EU (20 MHz operating channels)
-
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels) - Wireless Security
-
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal - Transmission Rate
-
802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps - Transmitter Power for 802.11a
-
23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps - Transmitter Power for 802.11n (5 GHz)
-
23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz - Transmitter Power for 802.11b
-
26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps - Transmitter Power for 802.11g
-
23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
19±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps - Transmitter Power for 802.11n (2.4 GHz)
-
23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz - Transmitter Power
- n nn n n n n n nnnnnnUSnEUnJPnnnnnnnn2.4 GHzn26 dBmn18 dBmn18 dBmnnn5 GHz (UNII-1)n23 dBmn21 dBmn21 dBmnnn5 GHz (UNII-2)n23 dBmn21 dBmn21 dBmnnn5 GHz (UNII-2e)n23 dBmn23 dBmn23 dBmnnn5 GHz (UNII-3)n23 dBmn–n–nnnnnnnnNote: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.nnnnnn n n n n
- Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
-
Typ. -90 @ 6 Mbps
Typ. -88 @ 9 Mbps
Typ. -88 @ 12 Mbps
Typ. -85 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -74 @ 48 Mbps
Typ. -72 @ 54 Mbps
Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications. - Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
-
Typ. -69 dBm @ MCS7 20 MHz
Typ. -71 dBm @ MCS15 20 MHz
Typ. -63 dBm @ MCS7 40 MHz
Typ. -68 dBm @ MCS15 40 MHz
Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications. - Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
-
Typ. -93 dBm @ 1 Mbps
Typ. -93 dBm @ 2 Mbps
Typ. -93 dBm @ 5.5 Mbps
Typ. -88 dBm @ 11 Mbps - Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
-
Typ. -88 dBm @ 6 Mbps
Typ. -86 dBm @ 9 Mbps
Typ. -85 dBm @ 12 Mbps
Typ. -85 dBm @ 18 Mbps
Typ. -85 dBm @ 24 Mbps
Typ. -82 dBm @ 36 Mbps
Typ. -78 dBm @ 48 Mbps
Typ. -74 dBm @ 54 Mbps - Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
-
Typ. -70 dBm @ MCS7 20 MHz
Typ. -69 dBm @ MCS15 20 MHz
Typ. -67 dBm @ MCS7 40 MHz
Typ. -67 dBm @ MCS15 40 MHz - WLAN Operation Mode
- Access point, Client, Client-Router, Master, Slave, Sniffer
- Antenna
- External, 2/2 dBi, Omni-directional
- Antenna Connectors
- 2 RP-SMA female
Ethernet Interface
- Standards
-
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3at for PoE
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol - PoE Ports (10/100/1000BaseT(X), RJ45 connector)
- 1
Ethernet Software Features
- Management
- DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
- Routing
- Port forwarding, Static Route, NAT
- Redundancy Protocols
- RSTP, STP
- Security
- HTTPS/SSL, RADIUS, SSH
- Time Management
- SNTP Client
Firewall
- Filter
- ICMP, MAC address, IP protocol, Port-based
Serial Interface
- Console Port
- RS-232, 8-pin RJ45
LED Interface
- LED Indicators
- PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, WLAN, LAN
Input/Output Interface
- Digital Inputs
-
2
Max. input current: 8 mA
+13 to +30 V for state 1
+3 to -30 V for state 0 - Alarm Contact Channels
- Relay output with current carrying capacity of 1 A @ 24 VDC
- Buttons
- Reset button
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP30
- Dimensions
- 52.7 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)
- Weight
- 860 g (1.9 lb)
- Installation
- DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
- Input Current
- 0.6 A @ 12 VDC, 0.15 A @ 48 VDC
- Input Voltage
- 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
- Power Connector
- 1 removable 10-contact terminal block(s)
- Power Consumption
- 7.2 W (max.)
- Reverse Polarity Protection
- Supported
Environmental Limits
- Operating Temperature
- -25 to 60°C (-13 to 140°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
-
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF - Hazardous Locations
- ATEX, Class I Division 2, IECEx
- Radio
- EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, ANATEL, MIC, NCC, RCM, SRRC, WPC, KC
- Safety
- EN 60950-1, UL 60950-1
- Vibration
- IEC 60068-2-6
MTBF
- Time
- 570,854 hrs
- Standards
- Telcordia SR332
Warranty
- Warranty Period
- 5 years
