Descrizione IOLOGIK E1214

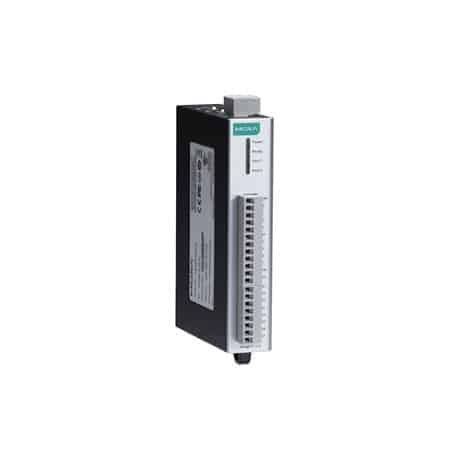

Il ioLogik E1214 è un dispositivo avanzato di I/O remoto Ethernet, parte della rinomata serie E1200 di Moxa, progettato per facilitare l’integrazione e la comunicazione in una vasta gamma di applicazioni industriali. Questo modello supporta sei diversi protocolli, tra cui Modbus TCP, EtherNet/IP e SNMP, rendendolo ideale sia per ingegneri IT che OT.
Con la sua capacità di connessione in daisy-chain, il ioLogik E1214 permette una facile espansione delle reti I/O senza la necessità di switch Ethernet aggiuntivi, riducendo così i costi generali e di cablaggio. Inoltre, la funzionalità peer-to-peer semplifica notevolmente il processo di cablaggio, trasferendo direttamente i valori di input agli output.
Questo modello è particolarmente resistente, operando efficacemente in un range di temperatura da -10 a 60°C, e offre flessibilità attraverso indirizzamento TCP Modbus definibile dall’utente, facilitando l’aggiornamento di sistemi esistenti senza complicazioni. La tecnologia push integrata garantisce una comunicazione efficiente e precisa con il sistema SCADA, inviando dati solo quando si verificano cambiamenti di stato o eventi configurati.
Le specifiche tecniche includono 6 ingressi digitali e 6 uscite a relè, rendendo il ioLogik E1214 una scelta robusta e versatile per le tue esigenze di automazione.
Specifiche Tecniche IOLOGIK E1214
Scarica scheda tecnica IOLOGIK E1214Input/Output Interface
- Digital Input Channels
- 6
- Relay Channels
- 6
- Isolation
- 3k VDC or 2k Vrms
- Buttons
- Reset button
Digital Inputs
- Connector
- Screw-fastened Euroblock terminal
- Sensor Type
-
Dry contact
Wet contact (NPN or PNP) - I/O Mode
- DI or event counter
- Dry Contact
-
On: short to GND
Off: open - Wet Contact (DI to COM)
-
On: 10 to 30 VDC
Off: 0 to 3 VDC - Counter Frequency
- 250 Hz
- Digital Filtering Time Interval
- Software configurable
- Points per COM
- 6 channels
Relays
- Connector
- Screw-fastened Euroblock terminal
- Type
- Form A (N.O.) power relay
- I/O Mode
- Relay or pulse output
- Pulse Output Frequency
- 0.3 Hz at rated load (max.)
- Contact Current Rating
- Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC
- Contact Resistance
- 100 milli-ohms (max.)
- Mechanical Endurance
- 5,000,000 operations
- Electrical Endurance
- 100,000 operations @ 5 A resistive load
- Breakdown Voltage
- 500 VAC
- Initial Insulation Resistance
- 1,000 mega-ohms (min.) @ 500 VDC
- Note
- Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
- 2, 1 MAC address (Ethernet bypass)
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options
- Web Console (HTTP), Windows Utility (ioSearch), MCC Tool
- Industrial Protocols
- Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, EtherNet/IP Adapter
- Management
- RESTful API, SNMPv1/v2c, SNMPv1 Trap, HTTP, DHCP Client, BOOTP, IPv4, TCP/IP, UDP
- MIB
- Device Settings MIB
- Security
- Access control list
Security Functions
- Authentication
- Local database
LED Interface
- LED Indicators
- Power, Ready, Port 1, Port 2
Modbus TCP
- Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
- Mode
- Server (Slave)
- Max. No. of Client Connections
- 10
EtherNet/IP
- Mode
- Adapter
- Max. No. of Scanner Connections
- 9 (for read-only), 1 (for read/write)
Power Parameters
- Power Connector
- Screw-fastened Euroblock terminal
- No. of Power Inputs
- 1
- Input Voltage
- 12 to 36 VDC
- Power Consumption
- 188 mA @ 24 VDC
Physical Characteristics
- Housing
- Plastic
- Dimensions
- 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
- Weight
- 200 g (0.44 lb)
- Installation
- DIN-rail mounting, Wall mounting
- Wiring
-
I/O cable, 16 to 26 AWG
Power cable, 12 to 24 AWG
Environmental Limits
- Operating Temperature
- -10 to 60°C (14 to 140°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Altitude
- 4000 mn n
Standards and Certifications
- EMC
- EN 55032/24, EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
-
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF - Hazardous Locations
- ATEX, Class I Division 2
- Safety
- UL 508
- Shock
- IEC 60068-2-27
- Freefall
- IEC 60068-2-32
- Vibration
- IEC 60068-2-6
Declaration
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Time
- 808,744 hrs
- Standards
- Telcordia SR332
Warranty
- Warranty Period
- 2 years
